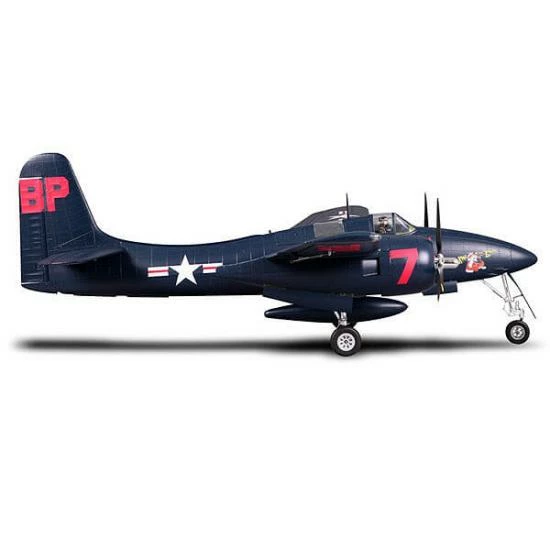

FMS 1700MM F7F TIGERCAT ARTF BLUE W/REFLEX

After almost two years development, numerous tests and improvements, we have reproduced the classical highly anticipated F7F! FMS 1700mm Tiger Cat is coming!

 The FMS 1700mm Tiger Cat pools the best structural features from FMS’ classic works. It adopts the popular quick and easy assembly and disassembly structure. Screws can do all assembly and disassembly work. In addition, with the latest multi-connect technology, FMS has streamlined the wing system, eliminating the wiring problems, and making it easier to install and dismantle in a short time. The well-designed battery compartment makes full use of airframe space, allowing for higher-storage batteries and more flying choices.

FMS’ warbirds are always attractive, no matter from the perspective of scaled appearance, or from excellent performance. This also applies to the Tiger Cat.

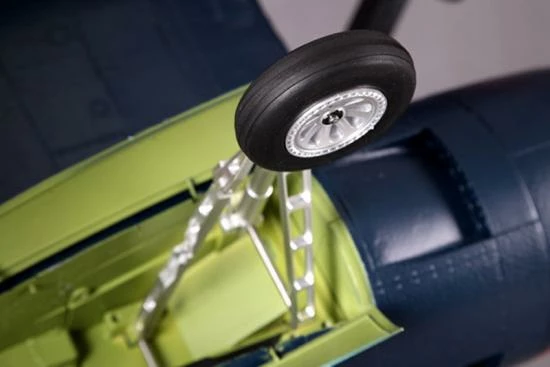

The Tiger Cat features the latest locked-rotor mode E-retract system with overcurrent protection, the refined scaled CNC-processed metal landing gear set (Certainly the most notable feature is that this is the most accurately scaled landing gear set we have ever created) for resisting those not-too-perfect landings, a 62mm diameter front wheel and 84mm diameter rear wheels for taking off and landing on both paved and grass surfaces. The power system utilizes twin 4250-KV440 outrunner motors, twin 60A ESC (with 10A UBEC), providing surging power for scaled aerial combat maneuvers when coupled with a 6S 5000mAh 45C battery.

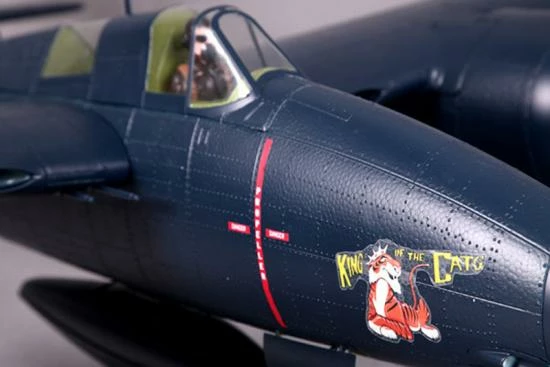

The Tiger Cat has the most scaled appearance, with scaled plastic parts throughout the body, e.g. landing gear door, cowl, artificial engine, and machine guns… Couple that with the detailed all-around rivets, panel lines, pilot figure, high bright LED lamps, a CNC-processed shock-absorbed metal landing gear set, the Tiger Cat is reproduced flawlessly. Moreover,4 set decals in the package (blue color scheme only) allow you to make your own Tiger Cat and stand out in your airfield

It is more than an RC model. It is one for the collectors. Go get the FMS 1700MM “Tiger Cat” to experience its magnificence.

Features

• Powerful twin KV440 motors with twin Predator 60A ESC (with 10A UBEC)
• Super accurate scaled landing gear set
• Scaled CNC-processed metal landing gear set
• Scale Pilot figure

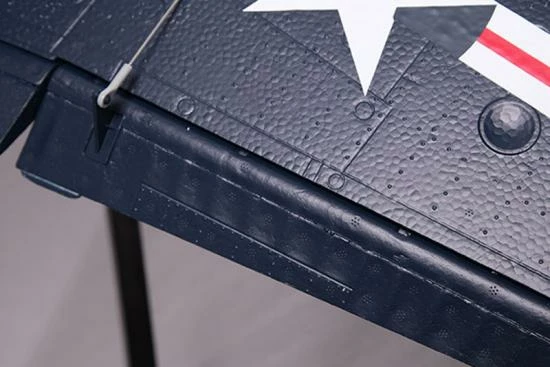

• Scale Panel lines and all-around rivets.
• High-brightness LED set
• The latest locked-rotor mode E-retract with over-current protection
• Metal digital servos for excellent control
• Multi-connector for one-step installation
• Screw-together construction
• A 62mm diameter front wheel and 84mm diame-ter rear wheels for taking off and landing on both paved and grass surfaces.
• Large bearings in wheel hub for better performance
• Button Type canopy hatch
• Large battery compartment
• Four set decals for DIY (blue color scheme only), to be different
• Reflex Technology

Specifications

Wingspan: 1700mm/ 66.9in
Overall Length: 1,484mm/ 58.4in
Flying Weight: Around 5200g
Motor Size Brushless: 4250-KV440 x 2
ESC: 60A*2 with 10A UBEC
Servo: 7 x 9g metal digital, 3 x 17g metal digital
CG (center of gravity): 70-80mm (from leading edge)
Prop Size: 14*8, 3 blades propeller
Aileron: Yes
Elevator: Yes
Rudder: Yes
Flaps: Yes
Retracts: Yes
Approx. Flying Duration: No
Minimum Age Recommendation: 14+
Experience Level: Intermediate
Recommended Environment: Outdoor
Assembly Time: 30 minutes
Material: Durable EPO

Required To Complete

• Transmitter
• Receiver
• Battery and Charger
• AA Batteries

For further information: on flying your RC plane in a safe and responsible manner please check out www.bmfa.org

Spec

• Brand: FMS
• Part No: FMS098PBLU-REFV2
• Barcode: 5056135754139
• Power: Electric
• Assembly Level: PNP (Plug n Play) / RR
• Flying Style:
  • Scale
  • Sport
